AstraRoll High Precision CNC-Machined Roller Shaft Production Process

In modern industrial manufacturing—whether in high-speed packaging, flexographic printing, or semiconductor web handling—the roller shaft is the absolute backbone of the machinery. Even a micrometer of runout or a slight deflection can cause web wrinkling, uneven tension, and catastrophic material waste.

At AstraRoll, we do not just machine metal; we engineer precision. Today, we are taking you behind the scenes to show you the meticulous production process of our high-precision CNC-machined rollers.

 Step 1: Premium Material Selection & Precision CNC Turning

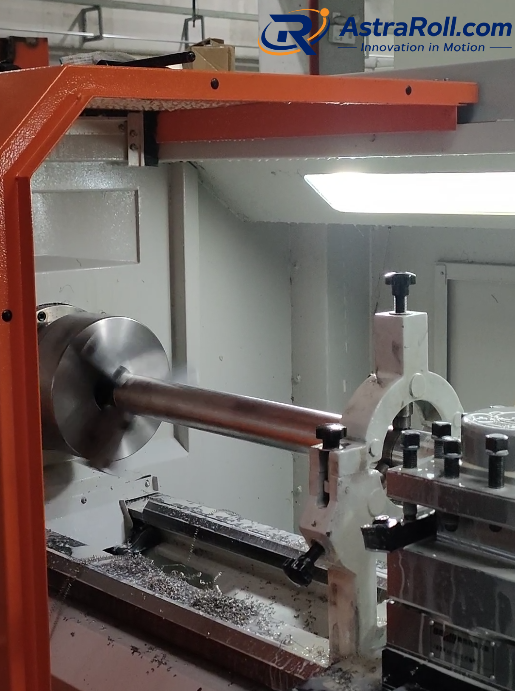

The foundation of a flawless roller starts with the raw material. AstraRoll selects only premium-grade raw materials—whether it is lightweight aluminum alloy for low-inertia guide rollers or forged steel for heavy-duty load bearing, the initial machining dictates the final quality. Using state-of-the-art CNC lathes, our technicians perform rough and finish turning. As seen in the image above, the roller is securely clamped and supported by a steady rest. Our CNC programming ensures that the cutting tool removes material with absolute consistency, achieving exact dimensional tolerances and a superior surface finish right from the start.

Step 2: Conquering Deflection in Long-Span Roller Shafts

One of the greatest challenges in roller manufacturing is machining long-span, small-diameter shafts without causing sagging or deflection (bowing in the center). At AstraRoll, we have solved the "long shaft" challenge. As seen in the image above, for exceptionally long rollers (often exceeding 3 or 4 meters), we utilize heavy-duty, extended-bed CNC machinery equipped with specialized center supports. This setup completely neutralizes the effects of gravity and cutting forces on the metal. It guarantees that the roller maintains perfect straightness and concentricity from end to end, which is critical for wide-web converting machines.

Step 3: Micro-Precision Cylindrical Grinding & Surface Treatments

Turning is only the beginning. To achieve the mirror-like finish and the extreme Total Indicator Reading (TIR) required by high-end industries, AstraRoll subjects every shaft to rigorous CNC cylindrical grinding.
We grind our rollers to strict micrometer tolerances, often achieving a TIR of less than 0.01mm. Following the grinding process, the rollers are ready for customized surface treatments—such as hard chrome plating for wear resistance, hard anodizing for aluminum rollers, or specialized plasma-sprayed ceramic coatings, depending on your exact operational environment.

Step 4: High-Speed Dynamic Balancing & Final QA

A dimensionally perfect roller can still cause catastrophic machine vibration if its weight is not perfectly distributed. That is why every AstraRoll shaft undergoes computerized dynamic balancing, fine-tuned to ISO 1940 G2.5 or G1.0 standards.

Watch our production team in action in the video below to see the precision and care that goes into our machining process:

Why Precision Matters

When you source from AstraRoll, you are investing in reduced machine downtime, higher line speeds, and flawless product yields. By controlling every single step of the production process in-house—from the initial lathe turning to the final dynamic balancing and surface coating—we ensure that your machinery performs at its absolute peak.

Are you looking to upgrade your production line with ultra-precise custom rollers? Contact our engineering team today to discuss your specific requirements and get a tailored manufacturing solution.
